CDP/IVR

CDP/IVR

Bertec’s Computerized Dynamic Posturography (CDP/IVR) combines immersive virtual environments with dual-balance force plate technology. The advancements in Bertec’s technology increase the clinical value of CDP in both assessment and targeted therapy interventions, especially for patients suffering from dizziness, balance problems and/or motion sensitivity. Training with immersive, virtual stimuli can increase patient motivation, adaptability and variability—all factors that positively affect patient outcomes.

• Next generation CDP

• Immersive virtual reality training

• Expanded assessment and treatment protocols

• Enhanced visual stimulus

• Low profile for easy access

• Touch screen display and remote control

Contact Sales

Sales Inquiry

Next generation CDP

Bertec’s extensive biomechanical engineering experience enables a technologically superior and clinically robust computerized dynamic posturography system. The use of immersive virtual reality unlocks endless training and visual assessment scenarios previously unavailable to clinicians and simply impossible with a mechanical surround.

Training with immersive, virtual stimuli

Increase patient adaptability, variability, and motivation with immersive and modular experiences for patients at any level of treatment and recovery. Working side-by-side with your patient, create compelling visual conflict using a library of stimuli that allow real-time modification of difficulty parameters.

Ergonomic design

The CDP/IVR’s low step-up profile provides easy access for your patients suffering from dizziness, balance problems, and/or motion sensitivity; its dynamic motion base intelligently hides its hinges to avoid physical and psychological trip hazards. Stay close and hands-on with your patient using the dedicated static clinician area and wireless remote.

---

The IVR is able to take you to different levels. It's an evolving product that is limitless on what you can do, both evaluation- and treatment-wise.

SHELLY MASSINGALE, THERAPY DIRECTOR AT BANNER CONCUSSION CENTER

Standard Package

Immersive virtual environment with real-time adjustable parameters

• Rock wall
• Checkerboard Room
• Optokinetic stripes (horizonal and vertical, adjustable width and speed)
• Grocery aisle (real-time adjustable parameters)
• Flight simulator
• Castle Corridor

Bertec Balance Advantage Software

Dedicated computer

Touchscreen monitor

Wireless keyboard and pointing device/mouse

Color printer

Dynamic base with dual-balance force plate

Visual surround immersive screen (74”W x 42”D x 105”H) with LCD projector

Integrated safety harness structure

Height adjustable clinician workstation

One-year parts and labor with ongoing support

Foam balance pad (18” x 20” x 4”)

Assessment Protocols

Dynamic:

• Sensory Organization Test (SOT)
• Motor Control Test (MCT)
• Adaptation Test (ADT)

Static:

• Limits of Stability (LOS)
• Rhythmic Weight Shift (RWS)
• Unilateral Stance (US)
• Weight Bearing Squat (WBS)

Featured Training

Quick Training

Mobility

Closed Chain

Weight Shifting

Vision

Specifications

Expanded assessment and treatment protocols

Low 4” step height onto dual-balance force plate

Low profile, easy access, open space, no hinge obstruction

High-sensitivity dual-balance force plate

Clinician touch screen display for user-friendly experience

Intuitive, comprehensive clinical software for patient tracking

Over 180 degree horizontal field of view, over 90 degree vertical field of view

18” x 20” balance plate level with 12”x 39” clinician standing area

Modular software design to fit your needs

Patented and HIPAA compliant patient database with merge and sync capabilities across all Bertec® Balance Advantage® products

Options

Bertec Balance Advantage Head-Shake Sensory Organization Test (HS-SOT)

Functional dual-balance force plates (20” x 60”)

Pediatric safety harness

Bariatric safety harness

Extended warranty

Vision Advantage

Vision Advantage

The Bertec Vision Advantage (BVA) identifies dysfunction in the vestibular ocular reflex (VOR) per the Dynamic Visual Acuity Test. The BVA provides a more objective test than the standard clinical DVA test using an eye chart. The BVA also includes a Gaze Stability Test that identifies when the VOR falls below normal limits and whether there is an asymmetry between the left and right side. These advanced capabilities allow the clinician to customize treatment to the patient, resulting in optimal patient outcomes.

• Wireless and light weight head tracker

• Next generation VOR assessments

• Patient-specific baseline comparison

• Automatic sensor calibration

• New technology allows for unrestricted patient movements and more flexibility for clinicians

• Optimal patient outcomes

Contact Sales

Sales Inquiry

Next generation VOR assessments

Do your patients have the optimal eye and head coordination to maximize their performance? Find out using the Bertec Vision Advantage system, which identifies dysfunction in the vestibular ocular reflex (VOR) per the Dynamic Visual Acuity (DVA) Test and measures the head velocity, axis, and direction where visual accuracy breaks down per the Gaze Stabilization Test (GST).

Wireless and lightweight

Eliminating the need for long, unruly cords, the wireless and lightweight head-worn sensor ensures that your patient’s head movement is un-hindered and free-moving. The sensor is designed to detect head movement in all directions, so our software can distinguish whether a patient’s head is moving correctly for each test.

Portable and convenient

The Bertec Vision Advantage’s portable design allows your facility to use the system in multiple locations to improve patient workflow.

Explore applications on our YouTube channel.

Standard Package

Wireless, lightweight head-worn sensor

Bertec Vision Advantage Software

Touch screen display and remote control

Wireless-computerized VOR training exercises with selectable controls for velocity and direction of head movement

Computerized Gaze Stabilization (GST) and Dynamic Visual Acuity (DVA) tests

Headband: adjustable elastic band

Triaxial gyroscope, accelerometer and compass sensors

Dedicated product case for portability and storage of system

Online educational product videos for clinician

Assessment Protocols

Visual Processing Time (VPT) – this quick screen ensures the patient can process the optotype (letter “E”) stimuli quickly enough to use DVA and GST protocols accurately and reliably.

Baseline Visual Acuity (BVAT) measures a patient’s visual acuity with the head stationary. The results are then used for comparison to visual acuity while the head is moving during DVA and GST protocols.

Dynamic Visual Acuity (DVA) provides an assessment of the smallest character the patient can identify accurately while the head is moving at a specific and constant velocity. Data can be collected for any axis of rotation (yaw, pitch, or roll) and are analyzed and reported for each direction of rotation separately. Results indicating significant loss of visual acuity in one or both directions are considered an indication of VOR impairment.

Gaze Stabilization Test (GST) measures the head velocity, axis, and direction where visual accuracy breaks down. Results provide insight into a patient’s effective use of VOR as it relates to functional demands for activities of daily living, and clinicians can use the data to make training decisions and document progress.

Patient Training uses computerized VOR training to simulate gaze stabilization X1 exercises, with selectable controls for velocity and direction of head movement. Training exercises are customized to patient performance on DVA and GST and can be programmed to progress through varying levels of challenge depending on patient’s successful completion. Progress reports are automatically stored for printing.

Specifications

Head rotation can be measured in yaw, pitch, and roll planes

Modular software design to fit your needs

Multiple Axis of Rotation

Wireless Inertial Measurement Unit (IMU)

Sampling Frequency: 175 Hz

Communication Range: Up to 20 feet +

Charging device: USB cable

Use per charge: Up to five hours

Battery: Rechargeable lithium-polymer

Patented and HIPAA compliant patient database with merge and sync capabilities across all Bertec® Balance Advantage® products

Recommend use with surgical bonnets (package of 100 supplied with purchase)

Portable Essential

Portable Essential

The Bertec Portable Essential provides a variety of assessments, including standard static balance tests, weight shifting, and optional higher-level balance testing for athletes. Static balance and weight shifting activities can be easily integrated into a customized therapy program.

• High-sensitivity dual-balance force plate

• Objective assessment of balance with normative data for comparison

• Convenient for clinical rehabilitation, home health, bedside, and community health programs

• Portable to bring balance services beyond clinic walls

• Training menus for use with biofeedback rehabilitation

• Low profile and light weight

Contact Sales

Sales Inquiry

Complete battery of assessment and training options

Integrate our complete battery of assessment and training options into a customized therapy program for patients suffering from dizziness, balance problems, and neurological challenges. Benefits include: objective assessment of balance with normative data for comparison; five assessments and five training menus; flexible training menus with hundreds of options; real-time parameter changes; and standardized protocols.

Patented dual-balance

Human balance relies on a complex control system. Bertec Portable Essential’s dual-balance plate captures minute shifts in balance and provides information on the asymmetry of loads of the right and left foot, allowing for more versatile assessments and accurate measurements.

Stylish and portable design

When paired with a laptop, Bertec’s highly sensitive, low profile dual-balance force plate, powered via USB, is a vital part of your clinic’s day-to-day practice. The lightweight design allows you to extend balance services beyond your clinic's walls and into home health, bedside, and community health programs.

Standard Package

Bertec Balance Advantage Software

Dual-balance force plate

Laptop computer with touchscreen display and remote control

Power cable and USB cable

Wireless pointing device/mouse

Foam balance pad (19” x 20” x 4”)

Database merge and sync

One-year parts and labor with ongoing support

Assessment Protocols

Modified Clinical Test of Sensory Interaction on Balance (mCTSIB)

Limits of Stability (LOS)

Rhythmic Weight Shift (RWS)

Unilateral Stance (US)

Weight Bearing Squat (WBS)

Featured Training

Quick Training

Mobility

Closed Chain

Weight Shifting

Seated Training

Specifications

High-sensitivity dual-balance force plate

Standardized protocols with normative data

Low 1.5” profile in an 18” x 20” configuration

Modular software design to fit your needs

500 lb load capacity

Patented and HIPAA compliant patient database with merge and sync capabilities across all Bertec® Balance Advantage® products

Portable system powered by USB

Options

Bertec® Vision Advantage™

Carrying case (custom fit to all components)

Extended warranty

Portable Functional

Portable Functional

The Bertec Portable Functional is a longer yet portable and highly sensitive balance force plate designed as a walkway for mobility assessment and training. The longer force plate allows the clinician to assess and train the patient on tasks that mimic daily walking, stair-stepping, and sit-to-stand activities.

• Objective assessment of functional movements

• Integrated high sensitivity dual-balance force plates

• Expanded assessment and treatment protocols

• Normative data ensuring evidence-based practice

• Low profile and light weight

• Functional training with biofeedback

Contact Sales

Sales Inquiry

Innovative design

Easily transported, the Bertec Portable Functional is powered by USB and configured with a touchscreen laptop and wireless remote. The highly sensitive, low profile design allows easy access for your patients suffering from dizziness, balance problems, and/or motion sensitivity.

Designed as a walkway for mobility

Assess and train your patient on tasks that mimic daily walking, stair-stepping, sit-to-stand, and weight shifting activities on longer, yet portable dual-balance force plates designed as a walkway for mobility assessment and training.

Standardized assessment protocols and extensive training options

Benefits include: standardized assessment protocols with normative data, eleven assessments and five training menus, flexible training menus with hundreds of options, real-time parameter changes, and a menu of training exercises for functional training with visual biofeedback.

Standard Package

Bertec® Balance Advantage® software

Dual balance plate, 500lb load capacity

Standardized protocols with normative data

20″x 60″ plate with low 1.5″ profile

One-year parts and labor with ongoing support

Included Accessories

Foam balance pad (18” x 20” x 4”)

Stackable, interlocking blocks, 4”, 8”, 12”

Wooden rocker board

Assessment Protocols

Modified Clinical Test of Sensory Interaction on Balance (mCTSIB)

Limits of Stability (LOS)

Rhythmic Weight Shift (RWS)

Unilateral Stance (US)

Weight Bearing Squat (WBS)

Sit to Stand

Step Up and Over

Step Quick Turn

Tandem Walk

Walk Across

Forward Lunge

Featured Training

Quick Training

Mobility

Closed Chain

Weight Shifting

Seated Training

Specifications

Low 1.5” profile

20” x 60” walkway-style configuration

500 lb load capacity

Modular software design to fit your needs

Low profile extended 60” balance plate system providing functional movement assessments for balance and mobility patients

Functional movement assessment and training

Patented and HIPAA compliant patient database with merge and sync capabilities across all Bertec® Balance Advantage® products

Portable system powered by USB

Options

Utilize with Bertec® Computerized Dynamic Posturography (CDP/IVR™) to expand both assessment and training capability

Prime IVR

Prime IVR

The Bertec Prime IVR adds Immersive Virtual Reality (IVR) to enhance clinical balance assessment and training. The immersive screen used in the Bertec Computerized Dynamic Posturography (CDP/IVR™) system is combined with a fixed dual-balance force plate. This unique product combines the flexibility of a small, force plate with the power of IVR training scenes. The Bertec Prime IVR includes a suite of assessments as well as training options to provide targeted and customized therapy depending on the needs of the patient.

• Immersive virtual reality training

• Enhanced visual stimulus

• New training technology combined with established balance assessments

• High-sensitivity dual-balance force plate

• Low profile for easy access

• Upgradable to CDP/IVR

Contact Sales

Sales Inquiry

New solution to provide IVR rehabilitation

Provide therapy to patients at a higher level by utilizing immersive virtual reality to perform assessments and enhanced clinical balance training. This unique product combines the flexibility of a small force plate with the power of IVR training scenes.

Versatility of multiple visual scenes

Provide your patients with an interactive and modular experience through an immersive virtual environment and visual surroundings. Create visual conflict with and without immersive virtual reality backgrounds depending on the needs of your patient.

Customized therapy

The Bertec Prime IVR includes a suite of assessments as well as training options to provide targeted and customized therapy for patients suffering from dizziness, balance problems, and/or motion sensitivity.

Standard Package

Immersive virtual environment with real-time adjustable parameters

• Rock wall
• Checkerboard Room
• Optokinetic stripes (horizonal and vertical, adjustable width and speed)
• Grocery aisle (real-time adjustable parameters)
• Flight simulator
• Castle Corridor

Bertec Balance Advantage Software

Visual surround immersive screen (74”W x 42”D x 105”H) with LCD projector

Dual-balance force plate (18” x 20”)

Cart-mounted, dedicated computer

Touchscreen monitor

Color Printer

Foam balance pad (18” x 20” x 4”)

Assessment Protocols

Modified Clinical Test of Sensory Interaction on Balance (mCTSIB)

Limits of Stability (LOS)

Rhythmic Weight Shift (RWS)

Unilateral Stance (US)

Weight Bearing Squat (WBS)

Featured Training

Quick Training

Mobility

Closed Chain

Weight Shifting

Seated Training

Vision

Specifications

Standardized assessment protocols with normative data to ensure evidence-based practice

Over 180 degree horizontal field of view, over 90 degree vertical field of view

Low 1.5” profile in an 18” x 20” dual-balance force-plate

Immersive virtual environment visual surround (74”W x 42”D x 105”H)

Set of training scenes for projection with dome optimized for the IVR environment

Modular software design to fit your needs

Clinical touch screen display and remote control

Patented and HIPAA compliant patient database with merge and sync capabilities across all Bertec® Balance Advantage® products

Powered by USB

Options

Upgradeable to complete Bertec® Computerized Dynamic Posturography (CDP/IVR™) system

Vision Trainer™

Vision Trainer

The Bertec Vision Trainer (BVT) trains visual, motor coordination, and balance skills. An impact-resistant touchscreen offers game-like training, designed to improve visual-motor performance and sensory function. Balance can be trained and enhanced with Bertec’s force plate. The interactive balance plate adds the dimension of balance to traditional visual-motor training.

• Improve visual-motor performance

• Achieve peak performance in fast-paced competitive environment

• Provide a unique modality for training during injury recovery

• Increase user motivation and participation

Contact Sales

Sales Inquiry

A Balanced Approach to Vision

BVT enhances visual-motor and balance performance through innovative, state-of-the-art technology. The BVT provides a variety of hand-eye coordination and visual memory tasks that lie at the core of our ability to carry out daily activities and interactions with objects as well as the people around us. Visual-spatial processing is a key component of balance, so we have integrated the balance plate to help improve reaction time, stability, and dynamic balance.

Crawl, Walk, Run

BVT uses the "crawl, walk, run" philosophy. This provides both a tailored approach to the needs of the person and a good framework to progress the individual based on their performance. For example, the software allows for an individual to perform similar activities of a high-performance athlete by adjusting the number, the speed, the size, and the area of targets. The duration of the training and visual backgrounds can also be customized to the individual's level of performance.

Visual Reality

The features with BVT to customize backgrounds and targets not only allows for tailored training but also creates a more real-life scenario that is specific to the individual. For example, a baseball player can work on eye-hand coordination and reaction times while viewing a baseball field. While someone who may have dizziness or feel unsteady in busy visual environments (such as the grocery store) can train as if they are pushing a grocery cart through the store. Customized training and multisensory-task training has shown to result in better outcomes.

Vision Training is Brain Training

BVT trains the brain to process visual information faster and more efficiently. Flash, Sequence, and Multi training modes were developed to stimulate cognition, enhance spatial awareness, and improve visual memory brain processes. Custom vision training is simple with rich selection of features to tune the training to the individual. Cognitive-based training modes are designed to train pattern recognition, spatial awareness, and working memory skills.

Explore applications on our YouTube channel.

Standard Package

Bertec Vision Trainer software

Slim profile with large, interactive TV screen

Dedicated integrated computer

55” commercial grade touchscreen

Height adjustable Ergotron cart

Power cable, HDMI cable & power strip

Featured Training

Speed

Peripheral

Sequence

Reaction

Flash

Go/No-Go

Balance

Specifications

Customizable training

Touchscreen operation

Compact, all-in-one vision training system

Simple & intuitive user interface

Minimum ceiling height: 7 ft

System weight: ~100 lb

Capacitive touchscreen monitor: 55”

Electrical requirements: 120 VAC 6.0 amps

General footprint: ~4x2 ft

Computer: Intel Nuc (Windows 10, i3 Processor)

Options

Balance Plate

Head Mounted Display

Head Mounted Display

The Bertec Head Mounted Display is a clinical balance and multisensory training device designed to be a natural step in a patient's rehabilitation progression. By integrating wireless virtual reality, position-sensing hand controllers, and Bertec's trusted Balance Platform, this device provides clinicians with consistent visual and interactive environments for their patients by simulating real-life situations and gradually increasing the complexity of training.

• Wireless connection

• Balance and Multisensory Training

• Real-time feedback on patient performance

• Expanded vision, sensory, and balance trainings

• Unique patient safety features

• Plug-n-play addition to the clinical daily workflow

• Requires Bertec Portable Essential System

Contact Sales

Sales Inquiry

Immersive Multisensory Training

As an add-on to the Portable Essential System, Bertec's Head Mounted Display provides portable, wireless, and interactive virtual reality for patients who can tolerate this immersive experience. Clinicians can incorporate HMD training using the results from the Portable Essential assessments, and continue to challenge their patients with sensory, vision, cognitive, and balance training.

Real-Time Feedback

Bertec Balance Advantage Software provides the clinician with a patient view on their system laptop which mirrors what the patient views in the Head Mounted Display, so the clinician can monitor the patient environment while changing training settings. Each training provides real-time scoring, as well as detailed end-of-test reports to track patient progress and share improvements with patients.

Patient Safety Features

Bertec’s Head Mounted Display has a fast wireless connection, so patient movement is not restricted by a cord and there is no lag in software communication speed. For reducing patient anxiety, this system's unique passthrough mode allows users to see their external environment while the headset is still on. The ergonomic counterweight design of this headset evenly distributes weight across the patient's head to avoid neck strain. Using the provided gait belt and adjusting the various training settings allows clinicians to tailor training specifically to their patient's capability.

Seamless Integration

Bertec’s Head Mounted Display allows for seamless integration into your existing clinical workflow. Its reliable wireless connection and portable form factor make it simple to set up in any clinic, synced patient information reduces time for creating and viewing patient profiles in Bertec products, and the provided custom carry case ensures your system remains protected.

Standard Package

Bertec® Balance Advantage® Software

Head Mounted Display

Position-sensing Wireless Hand Controllers

Power Cables and USB Hub

Travel Wi-Fi Router

Custom Carrying Case

Gait Belt

One-year parts and labor with ongoing support

Training Protocols

Sensory:

Response Inhibition

Spatial Memory

Perception Span

Reaction Trainer

Quick Training:

25 Training protocols with 7 scene options

Vision:

Head Tilt Response (HTR)

Rod & Frame (R&F)

Subjective Visual Horizontal (SVH)

Subjective Visual Vertical (SVV)

Visual Flow

• Boardwalk
• Park
• Driving

Optokinetics Flow

Weight Shifting

Vision

Specifications

Wireless Head Mounted Display

Ergonomic Counterweight Design

98° High Fidelity Field of View

6 Degree of Freedom Room Scale Tracking

4k Resolution @ 70 Hz Wireless Refresh Rate

Replaceable face cushion

Built in speakers

HMD position, rotation, acceleration, and velocity data

Safety “Passthrough” mode to view external environment from within HMD

Patented and HIPAA compliant patient database with merge and sync capabilities across all Bertec® Balance Advantage® products

Options

Extended Warranty

Force Plates

Force Plates

Bertec force plates are designed for gait, balance, and performance analyses. Our patented strain gauge technology, innovative transducer designs, and quality manufacturing help you capture the highly accurate data needed for your research.

• Wide range of applications

• Variety of sizes and load ranges

• Superior electronics

• Negligible cross talk, drift and signal interference

• Ease of data collection

• Strongest industry warranty

Superior technology

Bertec force plates lead the industry in center of pressure and force measurement accuracy with negligible crosstalk, drift, and signal interference. Analog signals sampled internally at 1000Hz are immediately processed by our custom electronics into digital data impervious to degradation.

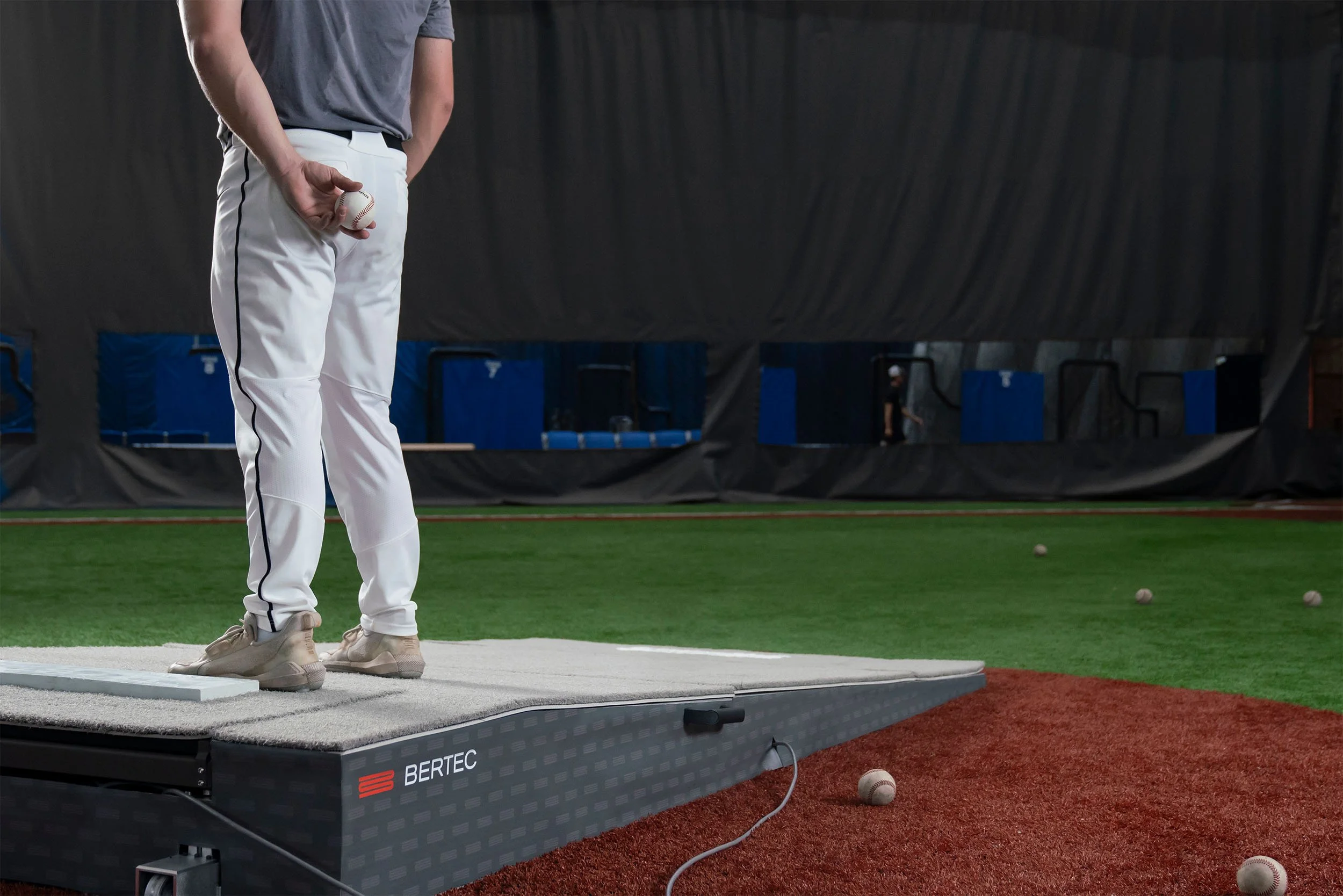

Portable solutions

Take your lab to them. Bertec's line of portable force plates allow for accurate and reliable data collection in more natural environments.

Strongest industry warranty

Representing a legacy of excellence in biomechanics for over 30 years, Bertec is proud to offer the strongest 7-year warranty on fixed force plates.

Fixed Walkway Solution

The Bertec Fixed Walkway allows researchers to mount Bertec’s 40x60 cm or 60x90 cm fixed force plates in a customizable in-series configuration for various biomechanics applications. Independently reconfigure your force plates depending on your experimental needs while maintaining data quality.

View the Product Brochure

Explore applications on our YouTube channel.

Configuration

model	width mm (in)	length mm (in)	height mm (in)	weight kg (lb)	load capacity 1000 lb (5000 N)	load capacity 2000 lb (10000 N)	load capacity 4000 lb (20000 N)	spec sheet
Portable (USB or standard output directly from force plate)
4060-05	400 (15.75)	600 (23.62)	50 (1.97)	8–10 (18–22)	✔	✔		download
5060-06	500 (19.68)	600 (23.62)	60 (2.36)	13 (28)		✔		download
6090-06	600 (23.62)	900 (35.42)	60 (2.36)	23 (50)		✔		download
Fixed
4060-07	400 (15.75)	600 (23.62)	75 (2.95)	38 (84)	✔	✔	✔	download
4060-08	400 (15.75)	600 (23.62)	83 (3.25)	38 (84)	✔	✔	✔	download
4060-10	400 (15.75)	600 (23.62)	100 (3.94)	30 (66)	✔	✔	✔	download
4060-15	400 (15.75)	600 (23.62)	150 (5.91)	21 (46)	✔	✔	✔	download
4550-08	464 (18.25)	508 (20)	83 (3.25)	38 (84)	✔	✔	✔	download
6012-15	600 (23.62)	1200 (47.24)	150 (5.91)	62 (137)	✔	✔	✔	download
6090-15	600 (23.62)	900 (35.43)	150 (5.91)	45 (99)	✔	✔	✔	download
9090-15	900 (35.43)	900 (35.43)	150 (5.91)	65 (143)	✔	✔	✔	download

Specifications

Available in a variety of sizes and load ranges

Utilize with any motion capture system including camera-based systems using passive or active markers

Simultaneously measures three force components and three moment components about the x, y, and z axes for a total of six outputs which are used to compute the Center of Pressure (CoP)

Also available - specialized force plates, balance plates, and jump plates, measuring only the vertical force and two moments which are used to compute the Center of Pressure (CoP)

Force plate signal is fed into your choice of amplifier - digital, analog or dual digital/analog output

Digital signal output from the portable force plate can be directly plugged into a standard USB port

Digital acquisition software enables the user to collect data quickly

SDK is available for download to integrate the force plate with custom software

Custom electronics guarantee negligible cross talk, drift and signal interference from external sources

Mounted and portable force plates available

Portable force plates allow data collection in more natural environments

Strongest industry warranty

Immersive Labs

Immersive Labs

Bertec Immersive Labs is an integrated research system for biomechanical analysis. It combines a split belt force instrumented treadmill, 3D motion capture system, and virtual reality dome. The system allows the researcher full control of the lab environment. You can customize the visuals, create cognitive challenges to test sensory performance, and control the motion of the treadmill. The system gives you the tools to design lifelike research environments to collect the most impactful biomechanical data possible. The treadmill can also be used for studies not using the visual scene depending on research needs of the organization.

Contact Sales

Sales Inquiry

The most biomechanically accurate immersive research lab in the world

Bertec Instrumented dual belt treadmill

Motion Capture

4 or 5m dome with full visual immersion

Design unique, innovative research protocols

Custom visual & proprioceptive perturbations

Cognitive tasks

Interactive challenges & obstacle avoidance

Live biofeedback

Safely challenge human sensory performance

Immersive environment

Safety harness

Emergency stop buttons

Features

Protocol builder

Real-time data synchronization

Customizable biofeedback features

Real-time customizable visual & mechanical triggers from kinetic & kinematic data

Treadmill

• Dual belt treadmill for 3D force measurements
• Dynamic control of belt speed

Instrumented Stairs

Instrumented Stairs

Bertec’s instrumented stairs are designed to measure ground reaction forces while ascending or descending stairs. Three of the four levels of stairs are instrumented with our patented strain gauge technology which allow the measurement of ground reaction force and moment as well as Center of Pressure (CoP).

• Measure ground reaction forces

• Assess mobility

• Mobile stairs-on-wheels

• Portable force plates easily detachable

• Four levels of stairs

• Use stand-alone

Contact Sales

Sales Inquiry

A one-of-a-kind solution

Measure ground reaction forces and assess mobility on customizable instrumented stairs. Because the stairs are on wheels and the force plates are easily detachable, the instrumented stairs have maximum portability. Use stand-alone force plates or add instrumented handrails to capture upper arm data as well.

Configuration

Three steps, 3 ft wide and 1 ft deep

Landing surface, 3 ft wide and 2 ft deep

Left and right handrails, 36.5 in height

Amplifiers with connecting cables

Options

Instrument one, two or three steps

Instrumented handrails available - each handrail outputs three components of force (Fx, Fy, Fz)

Specifications

Four levels of stairs of which three are instrumented

Portable force plates in the stairs can be easily detached and used stand-alone

Highly accurate 6-component load measurement from each plate (Fx, Fy, Fz, Mx, My, Mz)

Stairs on wheels allow you to move the system with ease

Wheels can be retracted to lock the stairs in place

Jump Analysis

Jump Analysis

Bertec’s biomechanics measurement technology captures movement details invisible to the human eye, helping you assess and track performance.

• Measure ground reaction forces

• Grade and rank athlete performance

• Tailor training to athlete specific needs

• High quality, durable force plates

• Superior electronics

• Ease of data collection

Contact Sales

Sales Inquiry

Superior technology

Bertec force plates lead the industry in center of pressure and force measurement accuracy with negligible crosstalk, drift, and signal interference. Analog signals sampled internally at 1000Hz are immediately processed by our custom electronics into digital data impervious to degradation.

Explore applications on our YouTube channel.

Specifications

Research grade force plates are of the highest quality and durability

Available in a variety of sizes and load ranges

Simultaneously measures three force components and three moment components about the x, y, and z axes for a total of six outputs which are used to compute the Center of Pressure (CoP)

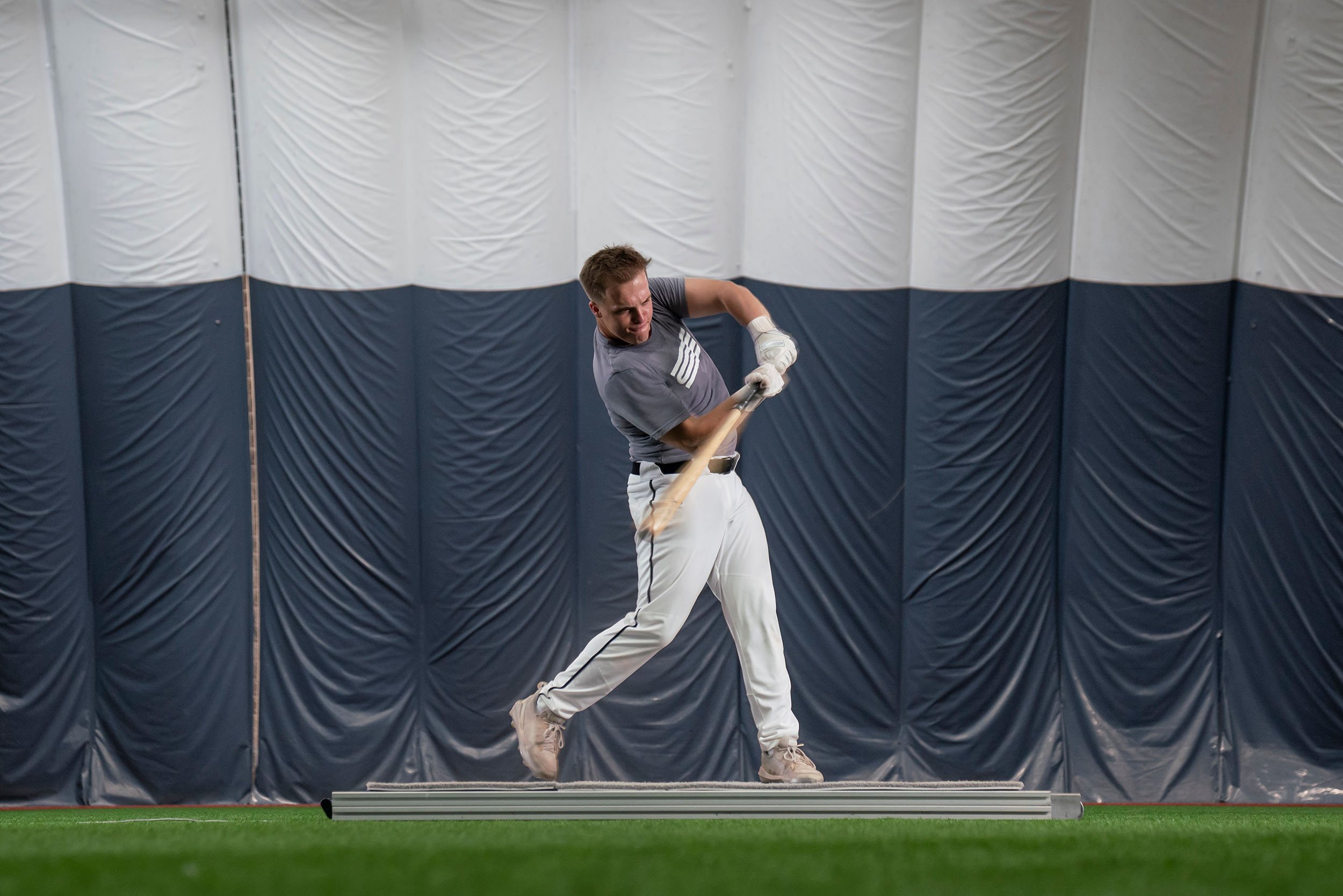

Swing Analysis

Swing Analysis

The preferred choice among top players and coaches around the world, Swing Catalyst analyzes swing motion from the ground up.

• Measure ground reaction forces

• Objectively quantify load and drive

• Automatic swing detection

• Professional grade video analysis

• Identify & improve unapparent performance

• Compare and rank athletes against expert performance

Contact Sales

Sales Inquiry

Professional Grade 2-D video analysis

In addition to the force plates, cameras are used with a full suite of drawing tools for video analysis. Swing Catalyst software provides features that make it easy to record lessons, compare swings, manage data, and post video lessons online to reach a wider audience. The astute coach will quickly become an expert in applied biomechanics.

Data-driven biofeedback

Objective force data assists the coach in analyzing the swing from a unique perspective, the ground reaction forces. We measure and analyze how the athlete uses their entire body to hit harder, farther, and more efficiently.

Explore applications on our YouTube channel.

Specifications

Research grade force plates are of the highest quality and durability

Available in a variety of sizes and load ranges

Simultaneously measures three force components and three moment components about the x, y, and z axes for a total of six outputs which are used to compute the Center of Pressure (CoP)

CoP pattern

CoP per foot available

Stance Width Measurement

Video and launch monitor synchronization

Instrumented Treadmill

Instrumented Treadmill

The Bertec Fully Instrumented Treadmill allows researchers to reduce gait laboratory space requirements and remove the limitations inherent in a traditional gait walkway. The unique design results in superior dynamic characteristics and a high natural frequency making it the most trusted research-grade fully instrumented treadmill available on the market.

View the Product Brochure

• Independent motion control of each belt

• Industry-leading accuracy

• Ease of treadmill control

• Variety of applications and ease of integration

• Unique design features

• Fully redesigned software solution

• Create custom experimental protocols

Contact Sales

Sales Inquiry

Industry-leading accuracy

Bertec treadmills offer high quality data at precision-controlled speeds and accelerations. The system’s high natural frequency, low vibration drive system, and Bertec’s custom electronics enable independent and highly accurate 6-component load measurements output at 1000 Hz from each belt.

Unique design

Meticulously designed, the Bertec Fully Instrumented Treadmill is a split belt system with each side controlled independently (or synced) in both forward and reverse directions. With optional instrumented handrails and incline systems, you can expand your studies to collect more scenarios including upper and lower body forces up to 15 degrees.

Precision controls

Full-featured software not only enables precise velocity and acceleration control of each treadmill belt, individually or simultaneously, but also provides a space for triggered data capture with your lab equipment. The live view of force and center of pressure data, and step counting with customizable force thresholds allows researchers to visualize and verify outputs.

Protocol builder

Create custom treadmill protocols to operate your device with unique playlist-style functionality. Offers repeatability for experiments by saving protocols and highlighting your favorite playlists. Sync your data capture with your custom protocol for one-click operation during experiments.

Easy integration

Works with all major motion capture systems. Hardware sync allows your treadmill to integrate seamlessly into your lab. Triggered data capture enables external sources to start and stop your data collection. Remote control enables advanced programmatic control of your treadmill via a Python API.

Explore applications on our YouTube channel.

Configuration

Two independent force measuring belts, m (in): 1.75 x 0.5 (approx. 70 x 20) each

Max Load Range: N (lb) - Fx, Fy: 2,500 (550) Fz: 5,000 (1,100)

Speed Range: m/s (mi/h): 0-11.5 (0-25)

Acceleration: m/s2 (ft/ s2): 0-25 (0-82)

Total Walking Surface: m (in) 1.75 x 1 (approx. 70 x 40)

Options

Incline: Analyze uphill and downhill movements up to 15 degrees

Overhead structure and harness ensures patient safety and prevents falls and off track movements. Users can be comfortable and confident during testing.

Instrumented handrails available - each handrail outputs three components of force (Fx, Fy, Fz)

Specifications

Unique design features result in superior dynamic characteristics and a high natural frequency making it the best suited treadmill for research

Split belt treadmill has two belts, one for each foot, which can be controlled independently in both forward and reverse with high precision at desired speed and acceleration

An incline feature can be added to the system for uphill analysis

Independent and highly accurate 6-component load measurement from each belt (Fx, Fy, Fz, Mx, My, Mz)

Works with any major motion capture system

Independant low vibration drive systems isolate each half from the other and ensures minimum interference in the data signal

One year standard warranty with optional maintenance packages

Instrumented Handrails

Instrumented Handrails

Bertec’s instrumented handrails are designed for measuring upper body force. The durable design along with the superior characteristics of strain gage sensors provide sustainability and long-term stability. The handrails are used with our fully instrumented treadmill, instrumented stairs, or stand-alone.

• Measure upper body forces

• Durable and strong

• Aesthetically appealing

• Provides support

• Users can be comfortable and confident during testing

• Long-term stability

Contact Sales

Sales Inquiry

Superior characteristics

Instrumented Handrails offer you the complete picture with upper body force measurement. Our handrails are designed to handle high-impact movements so that your subjects can be comfortable and confident during testing.

Easy integration

Fully compatible with new Bertec treadmill software so handrail and treadmill data can be collected simultaneously.

Configuration

Four load cells mounted under existing handrails

Two amplifiers with connecting cables

Options

Utilized with fully instrumented treadmill, instrumented stairs or stand-alone

Specifications

Utilized with Bertec’s instrumented treadmills and instrumented stairs

Each handrail outputs three components of force (Fx, Fy, Fz)

Designed to handle high impact movements

No obstruction of the primary goal - walking, running, ascending or descending

Durable, strong and aesthetically appealing
